OnSite-Tower1

In technological tie-up with M/s YESASWY Electronic Systems

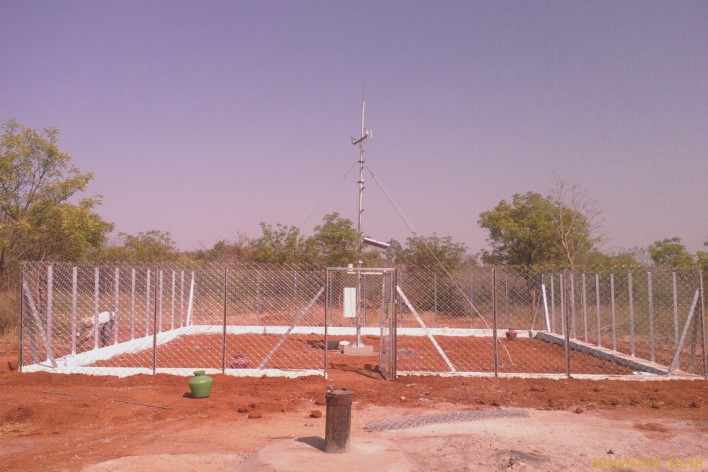

Automatic Weather Monitoring and forecasting for Agriculture

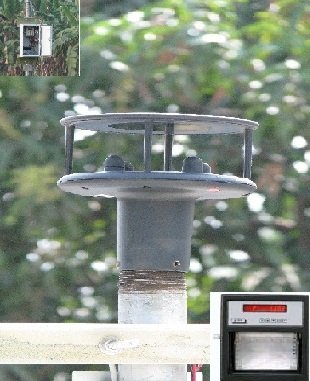

Anemometer

Wind Computer with 32bit Microcontroller 2 Pen 100mm Strip chart recorder Ultra Sonic Anemometer Local Data repeater Wind Speed Range: 0 200KM/Hr Wind Direction Range: 0 360 degree Operating Temperature: -20C to +60C

DL-M0812

Micro Processor : 32 Bit ARM Core Speed : 72MHz Program Memory : 128/256 Kbyte ADC Resolution : 8Ch@12bit System clock : RTC/GSM Operating Temperature range : 0C to +55C Internal Memory : Up to 8MB Data Backup : USB Pen Drive Battery Backup : External Sample Intervals : 1Min Programmable Visual display : 2 Line/16Ch LCD Operating Voltage : 9V-18V DC Power consumption : Less than 100mA Battery Charge controller : External Communication : In-built GSM/GPRS

PCB-GB562

Updating Shortly.....

WinCI-Main

WinC-I Specifications: 400MHz main CPU 64MB SDRAM Onboard 64MB ON-Board Flash Memory One 100M Ethernet 3.5 262K Colour LCD 8Ch 12Bit ADC, 4 Digital I/O with one pulse counter 3 Serial Ports 1 RS232/RS485 One USB Host and One USB Slave One SD Card Interface WindowsCE.NET 5.0 OS In-built RTC with battery on board Upto 99 sensors can be connected over RS485 Bus

PCB-GB167

Updating Shortly.....

Leaf Wetness Sensor

In technological tie-up with M/s YESASWY Electronic Systems Sensor type : Resistive Grid Resolution : 1 Measuring range : Scale of 0 (Completely dry)-20 (Saturated) of Surface moisture Accuracy : 5% Output : Analog / Digital Leaf wetness sensor is used to monitor the level of surface moisture on foliage.

Marine-Ship

Updating Shortly.....

Marine-MAWOS

Updating Shortly.....

Marine-DCP

Updating Shortly.....

Marine-DeskTop

Updating Shortly.....

MaWeT-DCP

Updating Shortly.....

MaWeT-Sensors

Updating Shortly.....

MaWeT-Data

Updating Shortly.....

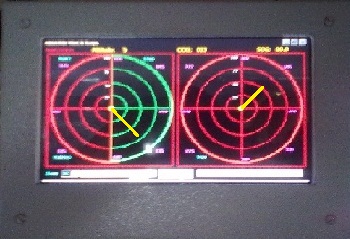

MaWeT-Scope

WinC-II MaWeT Specifications: 400MHz main CPU 64MB SDRAM Onboard 256MB ON-Board Flash Memory One 100M Ethernet 7 262K Colour LCD 3 Serial Ports 1 RS232/RS485 One USB Slave WindowsCE.NET 5.0 OS In-built RTC with battery on board

Marine-DeskTop

Updating Shortly.....

OnSite-Tower2

Updating Shortly.....

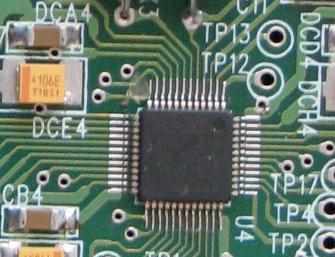

PCB-STM32

Updating Shortly.....

Marine-DeskTop

Updating Shortly.....

OnSite-DCP

Updating Shortly.....

Autometer

Updating Shortly.....

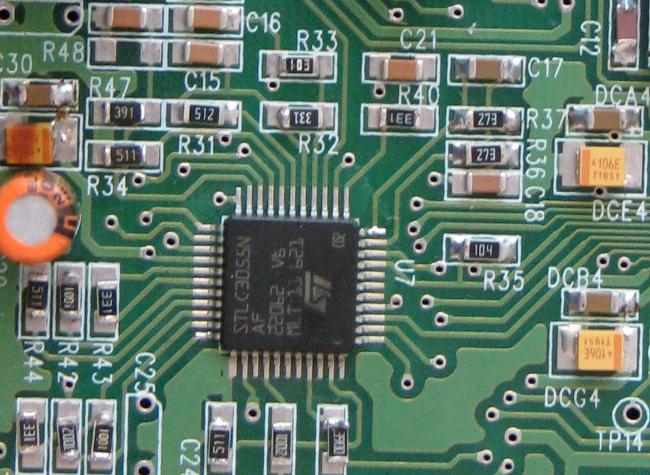

PCB-STLC3055

Updating Shortly.....

OnSite-Tower3

Updating Shortly.....
